java 可视化冒泡排序

1. 效果

（清除原有内容时会有闪屏 后面看看怎么搞）

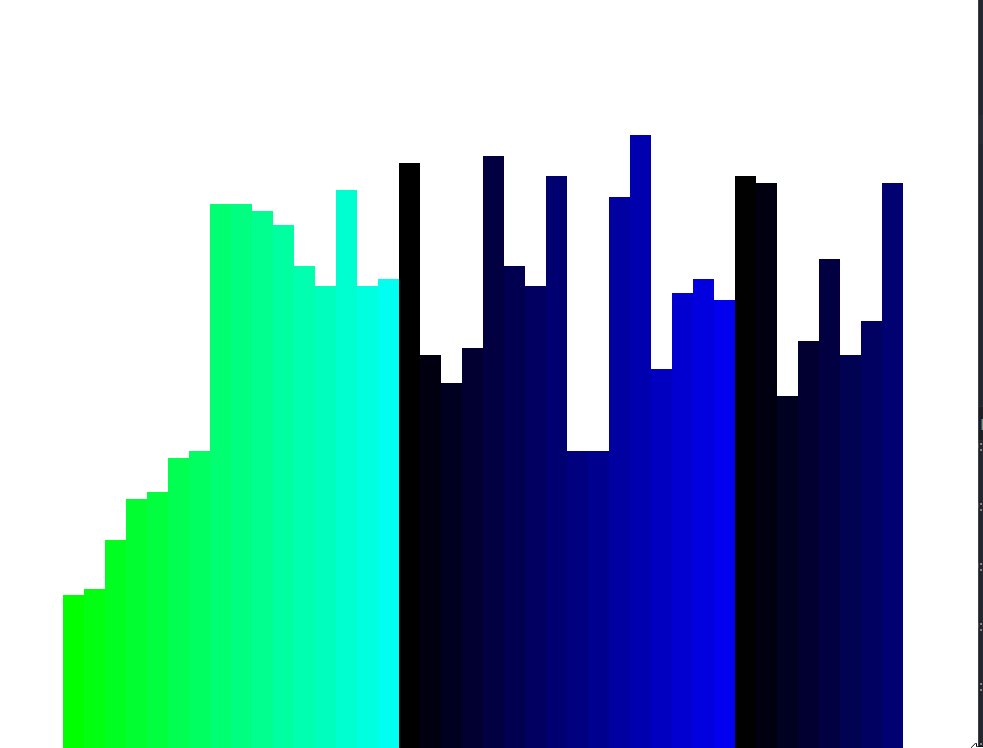

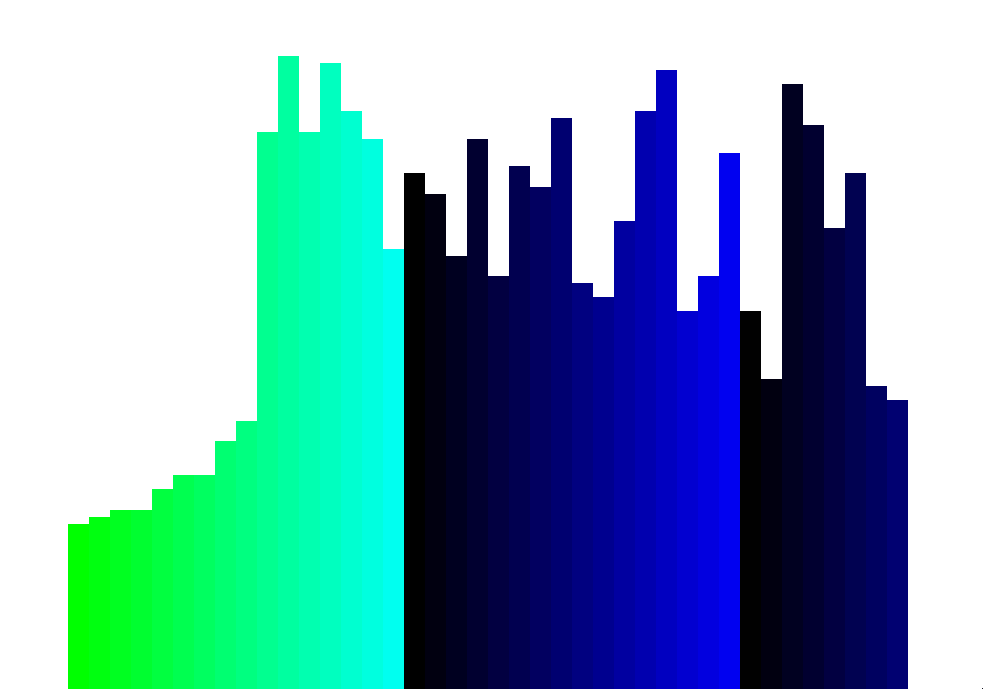

1. gif

（录到结束的）

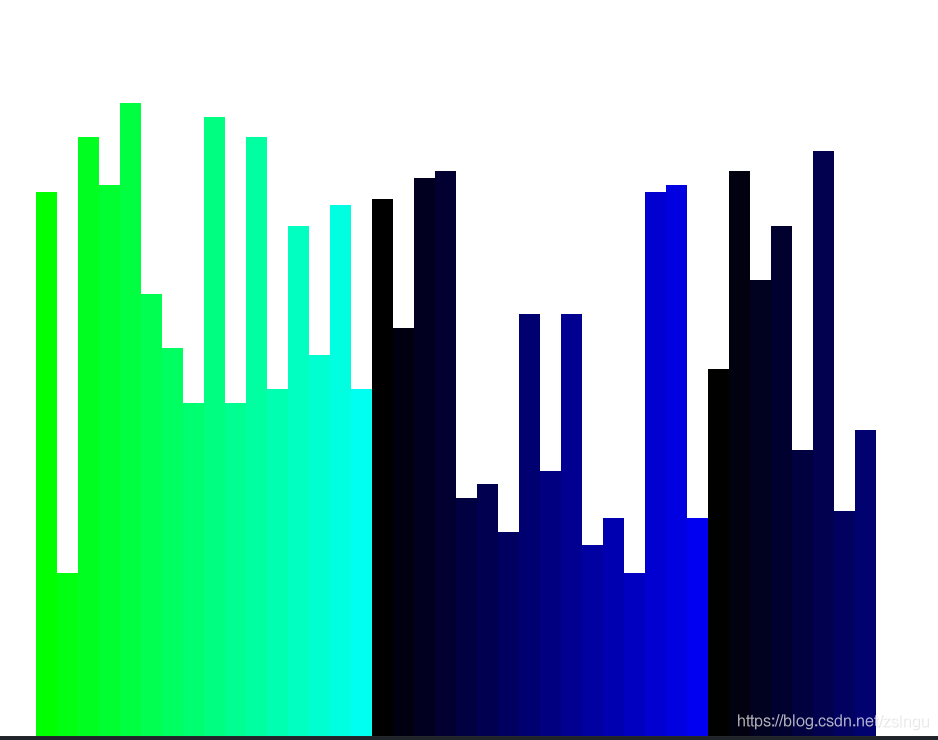

2. 开始

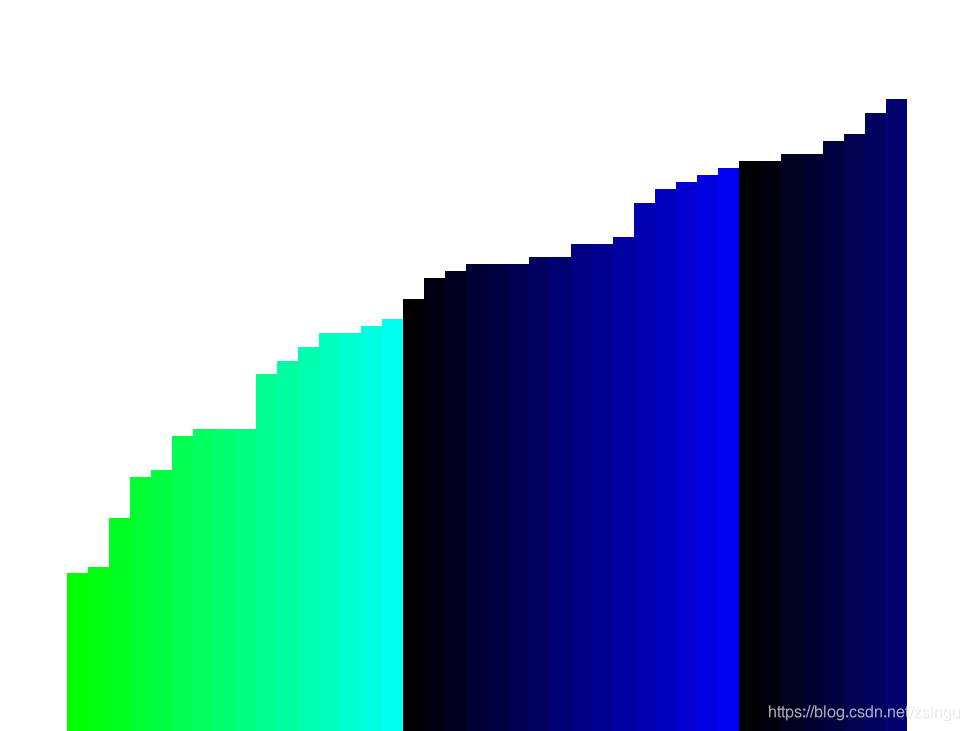

3. 结束

2. 代码

2.1 定制数组 (会触发数组元素变更的事件)

继承自ArrayList 重载 set 方法 当调用 set 函数时 释放 set事件

public class MyArray<T> extends ArrayList<T> {

    private List<OnChange<T>> listeners;

    public MyArray (List<OnChange<T>> listeners, List<T> ori) {
        super(ori);
        this.listeners = listeners;
        doNotify(l -> l.onInit(ori));
    }

    @Override
    public T set(int i, T ele) {
        T old = super.set(i, ele);
        doNotify(l -> l.onSet(i, old, ele));
        return old;
    }

    private void doNotify(Consumer<OnChange<T>> consumer) {
        listeners.forEach(consumer);
    }

    public static interface OnChange<T> {

        void onSet(int i, T old, T news);

        void onInit(List<T> ele);
    }
}

2. 绘图程序

实现上述数组的 onChange 接口 监听元素变更 以重新绘制

public class VisualArray extends JPanel implements MyArray.OnChange<Integer> {

    private List<Integer> data;
    private volatile Graphics graphics;
    private int rectWidth;
    private int totalHeight = 800;
    private int totalWidth = 1006;

    public VisualArray() {
         // 窗口初始化
        JFrame jFrame = new JFrame();
        jFrame.setContentPane(this);
        jFrame.setTitle("可视化数组");
        jFrame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        jFrame.setSize(totalWidth, this.totalHeight);
        jFrame.setVisible(true);

    }

    @Override
    public void paint(Graphics graphics) {
        super.paint(graphics);
        this.graphics = graphics;
        this.drawAll();
    }

    @Override
    public void onSet(int i, Integer old, Integer news) {
        this.data.set(i , news);
        this.paint(this.graphics);
        // 等待一段时间 方便观察效果
        try {
            Thread.sleep(200);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    private double rectHeightRate;
    private final int xStart = 73;

    @Override
    public void onInit(List<Integer> ele) {
        this.data = new ArrayList<>(ele);
        int size = this.data.size();

        int leftWidth = totalWidth - (int)(this.xStart * 2.2);
        this.rectWidth = leftWidth / size;

        int maxVal = this.data.stream().max(Comparator.comparing(Integer::intValue)).get();
        this.rectHeightRate = (this.totalHeight * 0.85) / maxVal;
        this.paint(this.graphics);
    }

    // 绘制数组所有的元素
    private void drawAll() {
        graphics.clearRect(0, 0, this.totalWidth, this.totalHeight);
        if (null == this.data || this.data.size() == 0) {
            return;
        }

        BasicStroke basicStroke = new BasicStroke(10.1f,BasicStroke.CAP_ROUND, BasicStroke.JOIN_BEVEL);
        ((Graphics2D)this.graphics).setStroke(basicStroke);
        int startColor = 0x00ff00;

        for (int i = 0; i < this.data.size(); i++) {
            this.graphics.setColor(new Color(startColor));
            int height = (int) (this.data.get(i) * this.rectHeightRate);
            this.graphics.fillRect(this.xStart + i * this.rectWidth, totalHeight - height, this.rectWidth, height);
            startColor += 16;
        }

        this.updateUI();
    }

}

3. 主方法

public class MainVisualSort {

    private boolean needSwap(int i, int j) {
        return i < j;
    }

    // 冒泡排序
    public void bubbleSort(List<Integer> list) {

        for (int i = 0; i < list.size(); i++) {
            for (int j = i + 1; j < list.size(); j++) {
                if (needSwap(list.get(j), list.get(i))) {
                    list.set(j, list.set(i, list.get(j)));
                }
            }
        }
    }

    public static void main(String[] args) {
        MainVisualSort mainVisualSort = new MainVisualSort();

        VisualArray visualArray = new VisualArray();
        // 等待 swing 初始化好
        try{
            Thread.sleep(200);
        } catch (Exception e) {
            e.printStackTrace();
        }
        // 随机40个元素
        List<Integer> toDeal = new ArrayList<>();
        for (int i = 0; i < 40; i++) {
            toDeal.add(Math.abs(new Random().nextInt(71)) + 30);
        }
        List<Integer> list = new MyArray<>(Collections.singletonList(visualArray), toDeal);
        mainVisualSort.bubbleSort(list);
    }
}

如果要观察快排效果 再实现一个 main 类中再加一个 quickSort方法即可
其余不需要改动
