UE5 中 LiveLink 的开发全流程教程

注意，需要有源代码版本的 Unreal Engine，而不是从游戏 Launcher 中下载的 Unreal 版本。

本文使用是 Unreal Engine 5.1 版本。关于一些基础 API 介绍，可以参考之前的一篇。

起点

可以将 Engine\Source\Programs\BlankProgram 作为模板拷贝一份，然后重新命名（可以使用文本编辑器进行全局替换之类的），这里命名成 CircleLiveLinkProvider，作为 Program 的起点。

使用 GenerateProjectFiles 刷新项目，这样新的 Program 就会出现在 UE 的工程中。

// CircleLiveLinkProvider.cpp
#include "CircleLiveLinkProvider.h"

#include "RequiredProgramMainCPPInclude.h"

DEFINE_LOG_CATEGORY_STATIC(LogCircleLiveLinkProvider, Log, All);

IMPLEMENT_APPLICATION(CircleLiveLinkProvider, "CircleLiveLinkProvider");

INT32_MAIN_INT32_ARGC_TCHAR_ARGV()
{
	GEngineLoop.PreInit(ArgC, ArgV);
	UE_LOG(LogCircleLiveLinkProvider, Display, TEXT("Hello World"));
	FEngineLoop::AppExit();
	return 0;
}

编译一下，在 Engine\Binaries\Win64（应该是对应平台下，我用的是 Windows，所以是在 Win64）文件夹下，会有对应编译好的可执行文件。

脱离引擎

如果想让程序独立引擎进行运行，需要使用和 Unreal 源码组织结构相同的目录层次结构。如果这时候你把生成的 .exe 拷贝出来运行，是会出现警告的，会提示没有游戏配置和引擎配置。

LogPaths: Warning: No paths for game localization data were specifed in the game configuration.
LogInit: Warning: No paths for engine localization data were specifed in the engine configuration.
LogCircleLiveLinkProvider: Display: Hello World

但是如果在 Engine\Binaries\Win64 文件夹下进行运行（也就是程序生成的目录），并不会出现这种问题。

这种裸 exe 其实是会有一些副作用的，比如我的电脑上，运行之后，会在 C:\Engine 中生成日志文件。

要想真正独立运行，我们需要把 .exe，放入到一个伪装的 Engine 下面。我们按照 Engine\Binaries\Win64 创建文件夹，并把引擎 Engine.和游戏配置拷贝出来。

CircleLiveLinkProvider
└─Engine
    ├─Binaries
    │  └─Win64
    │          CircleLiveLinkProvider.exe
    │          CircleLiveLinkProvider.pdb
    │
    └─Config
            Base.ini
            BaseEngine.ini
            BaseGame.ini

这样这个 Program 就可以独立运行了。运行程序之后，会发现自动在 Engine 文件夹中生成了 Programs 和 Saved

└─Engine
    ├─Binaries
    │  └─Win64
    │          CircleLiveLinkProvider.exe
    │          CircleLiveLinkProvider.pdb
    │
    ├─Config
    │      Base.ini
    │      BaseEngine.ini
    │      BaseGame.ini
    │
    ├─Programs
    │  └─CircleLiveLinkProvider
    │      └─Saved
    │          ├─Config
    │          │  ├─CrashReportClient
    │          │  │  └─UECC-Windows-69032E0743138D60D19DF9BAA8B91E3E
    │          │  │          CrashReportClient.ini
    │          │  │
    │          │  └─WindowsEditor
    │          │          Engine.ini
    │          │          Game.ini
    │          │
    │          └─Logs
    │                  CircleLiveLinkProvider.log
    │
    └─Saved
        └─Config
            └─WindowsEditor
                    Manifest.ini

可以看到，日志就会出现在我们创建的文件夹中，而不会出现在系统默认（缺省）的执行路径中。

Build.cs

引入 LiveLink 所需的依赖，LiveLink 默认依赖 Udp，所以需要引入 Messaging 和 UdpMessaging。

// Copyright Epic Games, Inc. All Rights Reserved.

using UnrealBuildTool;

public class CircleLiveLinkProvider : ModuleRules
{
	public CircleLiveLinkProvider(ReadOnlyTargetRules Target) : base(Target)
	{
		PublicIncludePaths.Add("Runtime/Launch/Public");

		PrivateIncludePaths.Add("Runtime/Launch/Private");      // For LaunchEngineLoop.cpp include

		PrivateDependencyModuleNames.AddRange(new[]
		{
			"Core",
			"CoreUObject",
			"Projects",
			"LiveLinkMessageBusFramework",
			"LiveLinkInterface",
			"Messaging",
			"UdpMessaging",
		});
	}
}

Target.cs

// Copyright Epic Games, Inc. All Rights Reserved.

using UnrealBuildTool;
using System.Collections.Generic;

[SupportedPlatforms(UnrealPlatformClass.All)]
public class CircleLiveLinkProviderTarget : TargetRules
{
	public CircleLiveLinkProviderTarget(TargetInfo Target) : base(Target)
	{
		Type = TargetType.Program;
		IncludeOrderVersion = EngineIncludeOrderVersion.Latest;
		LinkType = TargetLinkType.Monolithic;
		LaunchModuleName = "CircleLiveLinkProvider";

		// Lean and mean
		bBuildDeveloperTools = false;

		// Never use malloc profiling in Unreal Header Tool.  We set this because often UHT is compiled right before the engine
		// automatically by Unreal Build Tool, but if bUseMallocProfiler is defined, UHT can operate incorrectly.
		bUseMallocProfiler = false;

		// Editor-only is enabled for desktop platforms to run unit tests that depend on editor-only data
		// It's disabled in test and shipping configs to make profiling similar to the game
		bool bDebugOrDevelopment = Target.Configuration == UnrealTargetConfiguration.Debug || Target.Configuration == UnrealTargetConfiguration.Development;
		bBuildWithEditorOnlyData = Target.Platform.IsInGroup(UnrealPlatformGroup.Desktop) && bDebugOrDevelopment;

		// Currently this app is not linking against the engine, so we'll compile out references from Core to the rest of the engine
		bCompileAgainstEngine = false;
		bCompileAgainstCoreUObject = true; // !! 注意这里
		bCompileAgainstApplicationCore = false;
		bCompileICU = false;

		// UnrealHeaderTool is a console application, not a Windows app (sets entry point to main(), instead of WinMain())
		bIsBuildingConsoleApplication = true;
	}
}

LiveLink Demo 的实现

在源码文件夹下创建两个文件，LiveLinkCore.h 和 LiveLinkCore.cpp，然后重新运行 GenerateProjectFiles 刷新项目的工程文件。

// LiveLinkCore.h
#pragma once

#include "CoreMinimal.h"
#include "Misc/FrameRate.h"

struct ILiveLinkProvider;

struct FLiveLinkProviderCoreInitArgs
{
	FLiveLinkProviderCoreInitArgs(int32 Argc, TCHAR* ArgV[]);

	FFrameRate Framerate = FFrameRate(60, 1);
	FString SourceName{ TEXT("CircleLiveLinkProvider" });
};

class CIRCLELIVELINKPROVIDER_API LiveLinkCore
{
public:
	explicit LiveLinkCore(const FLiveLinkProviderCoreInitArgs& InitArgs);
	int32 Run();
	~LiveLinkCore();

private:
	void StartProvider();
	void Tick(float DeltaTime);
	void StopProvider() const;

private:
	double FrameTime;
	FLiveLinkProviderCoreInitArgs InitArgs;
	TSharedPtr<ILiveLinkProvider> LiveLinkProvider;
};

因为我们不想在这里就引入 LiveLink 的头文件，所以使用了前向声明 struct ILiveLinkProvider;。

程序的大体结构设计就是 FLiveLinkProviderCoreInitArgs 负责解析命令行参数，然后将他注入到 LiveLinkCore 中，之后程序逻辑由 LiveLinkCore 负责。

命令行参数解析

// LiveLinkCore.cpp
#include "LiveLinkCore.h"

DEFINE_LOG_CATEGORY_STATIC(LogCircleLiveLinkProviderCore, Log, All);

FLiveLinkProviderCoreInitArgs::FLiveLinkProviderCoreInitArgs(const int32 ArgC, TCHAR* ArgV[])
{
	const FString CmdLine = FCommandLine::BuildFromArgV(nullptr, ArgC, ArgV, nullptr);
	FCommandLine::Set(*CmdLine);

	if (FString Value; FParse::Value(*CmdLine, TEXT("-Framerate="), Value))
	{
		FParse::Value(*Value, TEXT("Numerator="), Framerate.Numerator);
		FParse::Value(*Value, TEXT("Denominator="), Framerate.Denominator);
	}

	FParse::Value(*CmdLine, TEXT("-SourceName="), SourceName);
}

Framerate.Numerator 是分母，Framerate.Denominator 是分子，Framerate.Numerator 为 60，Framerate.Denominator 为 1，就是 60 帧 1s。

使用非常简单，在头文件中包含该头文件：

// CircleLiveLinkProvider.h
#pragma once

#include "CoreMinimal.h"
#include "LiveLinkCore.h"

// ...
INT32_MAIN_INT32_ARGC_TCHAR_ARGV()
{
	int32 Result = GEngineLoop.PreInit(ArgC, ArgV, TEXT(" -messaging"));
	check(Result == 0);
	check(GConfig && GConfig->IsReadyForUse());

	FLiveLinkProviderCoreInitArgs LoopInitArgs(ArgC, ArgV);

	FEngineLoop::AppExit();
	return Result;
}

游戏内不会默认启用UDP消息传递。可以通过在打包好的游戏（ 不支持发布目标 ）内添加 -messaging 来启用它。文档

核心逻辑

构造函数和析构函数：

LiveLinkCore::LiveLinkCore(const FLiveLinkProviderCoreInitArgs& InitArgs):
	FrameTime(0.0), InitArgs(InitArgs)
{
}

LiveLinkCore::~LiveLinkCore()
{
}

void LiveLinkCore::StartProvider()
{
	LiveLinkProvider = ILiveLinkProvider::CreateLiveLinkProvider(InitArgs.SourceName);
	FLiveLinkStaticDataStruct StaticData = FLiveLinkStaticDataStruct(FLiveLinkTransformStaticData::StaticStruct());
	FLiveLinkTransformStaticData& TransformStaticData = *StaticData.Cast<FLiveLinkTransformStaticData>();

	TransformStaticData.PropertyNames.Add(TEXT("Cosine"));
	TransformStaticData.PropertyNames.Add(TEXT("Sinine"));

	LiveLinkProvider->UpdateSubjectStaticData(*InitArgs.SourceName, ULiveLinkTransformRole::StaticClass(), MoveTemp(StaticData));
}

void LiveLinkCore::StopProvider() const
{
	LiveLinkProvider->RemoveSubject(*InitArgs.SourceName);
}

加载模块：

INT32_MAIN_INT32_ARGC_TCHAR_ARGV()
{
	int32 Result = GEngineLoop.PreInit(ArgC, ArgV, TEXT(" -messaging"));
	check(Result == 0);
	check(GConfig && GConfig->IsReadyForUse());

	ProcessNewlyLoadedUObjects();

	FModuleManager::Get().StartProcessingNewlyLoadedObjects();
	FModuleManager::Get().LoadModuleChecked(TEXT("UdpMessaging"));

	FPlatformMisc::SetGracefulTerminationHandler();

	FLiveLinkProviderCoreInitArgs LoopInitArgs(ArgC, ArgV);

	FEngineLoop::AppPreExit();
	FModuleManager::Get().UnloadModulesAtShutdown();
	FEngineLoop::AppExit();
	return Result;
}

主循环：


int32 LiveLinkCore::Run()
{
	checkf(InitArgs.Framerate.AsInterval() > 0, TEXT("IdealFramerate must be greater than zero!"));
	checkf(!InitArgs.SourceName.IsEmpty(), TEXT("Source name cannot be empty!"));

	double DeltaTime = 0.0;
	FrameTime = FPlatformTime::Seconds();
	const float IdealFrameTime = InitArgs.Framerate.AsInterval();

	StartProvider();

	while (!IsEngineExitRequested())
	{
		Tick(DeltaTime);
		FTaskGraphInterface::Get().ProcessThreadUntilIdle(ENamedThreads::GameThread);
		FTSTicker::GetCoreTicker().Tick(DeltaTime);

		GFrameCounter++;

		IncrementalPurgeGarbage(true, FMath::Max<float>(0.002f, IdealFrameTime - (FPlatformTime::Seconds() - FrameTime)));
		FPlatformProcess::Sleep(FMath::Max<float>(0.0f, IdealFrameTime - (FPlatformTime::Seconds() - FrameTime)));

		const double CurrentTime = FPlatformTime::Seconds();
		DeltaTime = CurrentTime - FrameTime;
		FrameTime = CurrentTime;
	}

	StopProvider();
	UE_LOG(LogCircleLiveLinkProviderCore, Display, TEXT("%s Shutdown"), *InitArgs.SourceName);

	FTaskGraphInterface::Get().ProcessThreadUntilIdle(ENamedThreads::GameThread);
	return 0;
}

帧数据：

void LiveLinkCore::Tick(float DeltaTime)
{
	FLiveLinkFrameDataStruct FrameDataStruct = FLiveLinkFrameDataStruct(FLiveLinkTransformFrameData::StaticStruct());
	FLiveLinkTransformFrameData& TransformFrameData = *FrameDataStruct.Cast<FLiveLinkTransformFrameData>();

	const float Radians = FMath::DegreesToRadians<float>(GFrameCounter % 360);
	const float CosValue = FMath::Cos(Radians);
	const float SinValue = FMath::Sin(Radians);
	const int ScaleFactor = 200;

	TransformFrameData.Transform.SetLocation(FVector(ScaleFactor * CosValue, ScaleFactor * SinValue, ScaleFactor));

	TransformFrameData.PropertyValues.Add(CosValue);
	TransformFrameData.PropertyValues.Add(SinValue);

	if (GFrameCounter % 100 == 0)
	{
		UE_LOG(LogCircleLiveLinkProviderCore, Display, TEXT("(%d) - Cosine: %f Sine: %f"), GFrameCounter, CosValue, SinValue);
	}


	TransformFrameData.WorldTime = FrameTime;
	const FTimecode EngineTimeCode = FTimecode(FrameTime, InitArgs.Framerate, true);
	TransformFrameData.MetaData.SceneTime = FQualifiedFrameTime(EngineTimeCode, InitArgs.Framerate);

	LiveLinkProvider->UpdateSubjectFrameData(*InitArgs.SourceName, MoveTemp(FrameDataStruct));
}

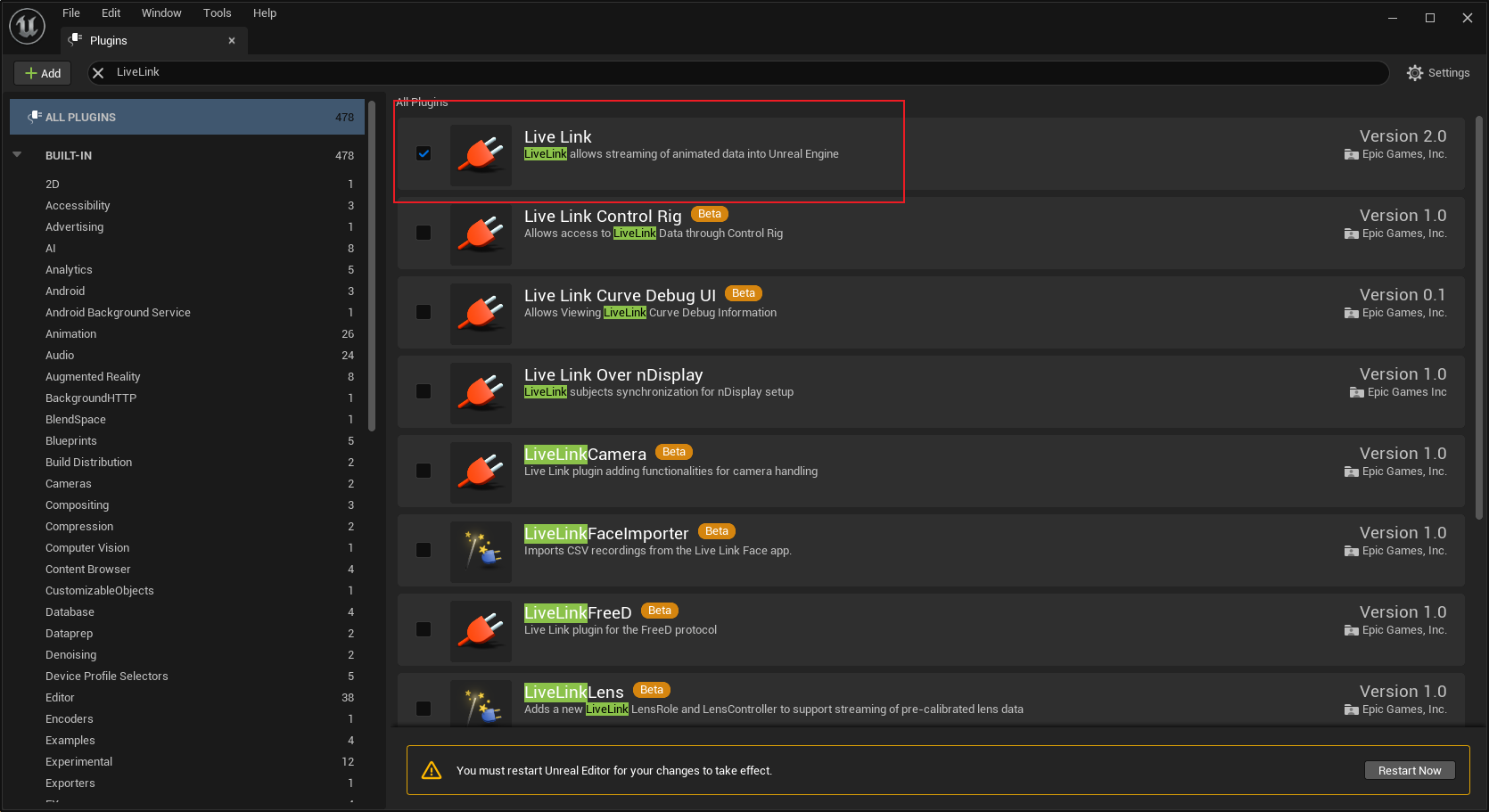

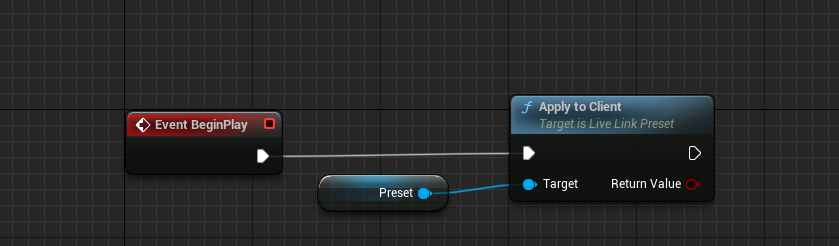

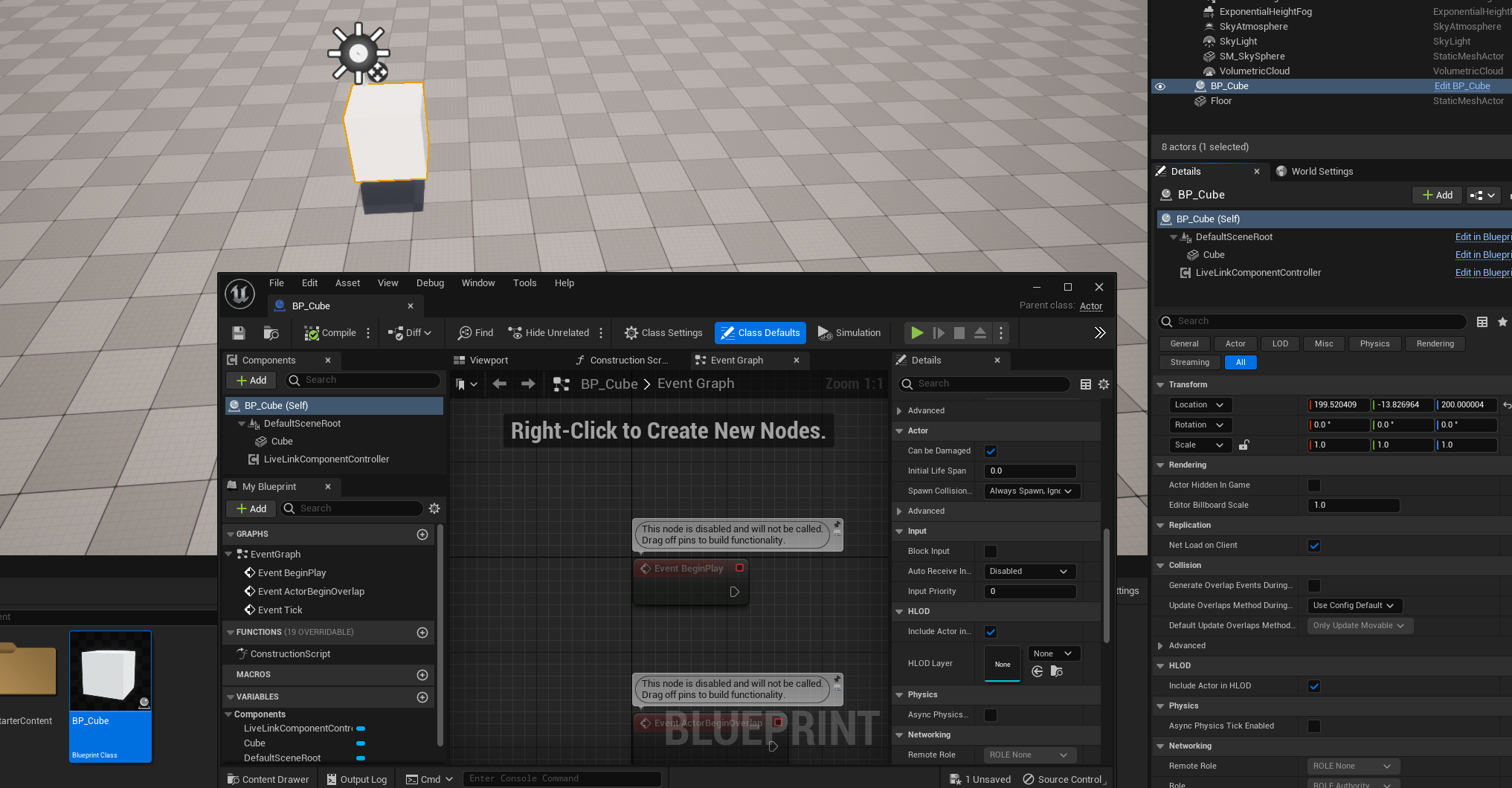

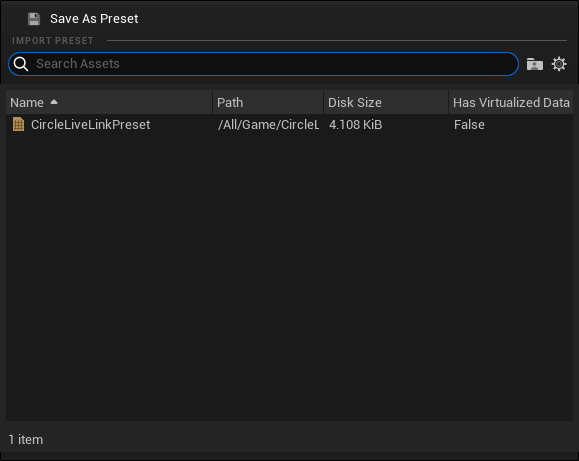

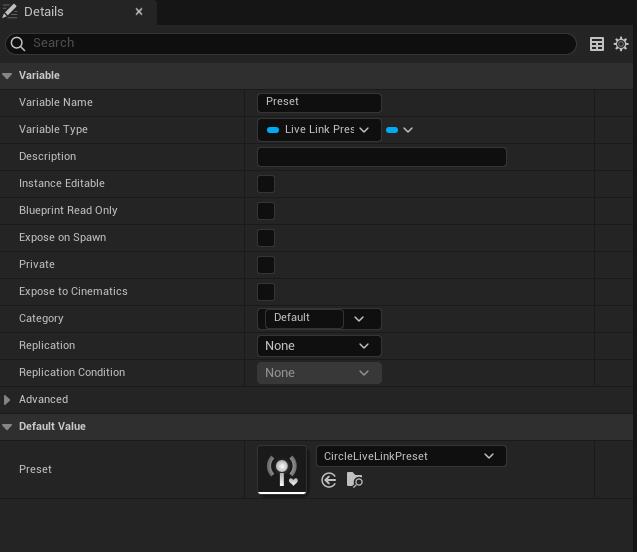

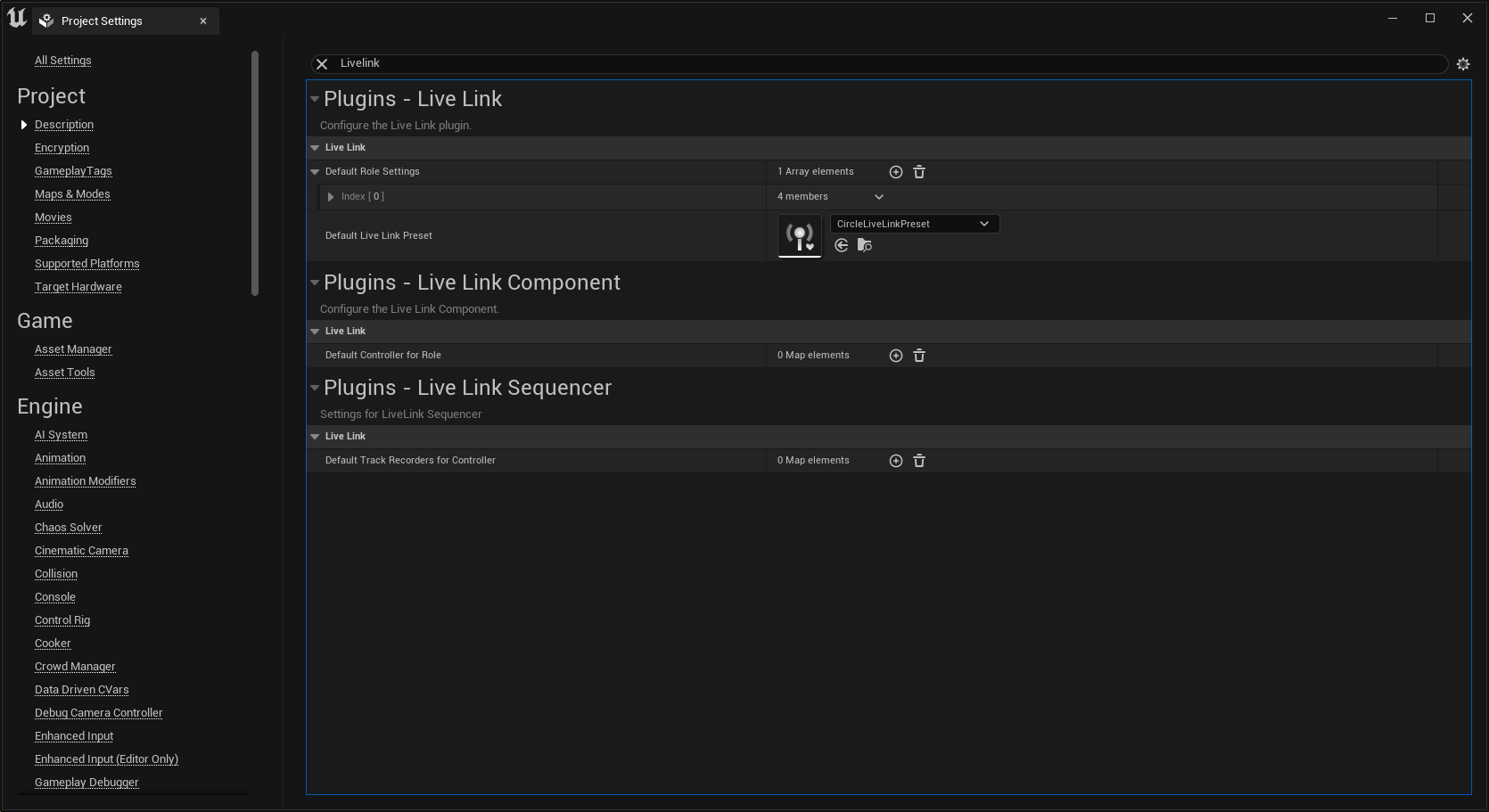

最终效果

LogCircleLiveLinkProviderCore: Display: (0) - Cosine: 1.000000 Sine: 0.000000
LogCircleLiveLinkProviderCore: Display: (100) - Cosine: -0.173648 Sine: 0.984808
LogCircleLiveLinkProviderCore: Display: (200) - Cosine: -0.939693 Sine: -0.342020
LogCircleLiveLinkProviderCore: Display: (300) - Cosine: 0.500000 Sine: -0.866025
LogCore: Warning: *** INTERRUPTED *** : SHUTTING DOWN
LogCore: Warning: *** INTERRUPTED *** : CTRL-C TO FORCE QUIT
LogCircleLiveLinkProviderCore: Display: CircleLiveLinkProvider Shutdown

可以看到退出的时候并不是暴力退出，而是有一段优雅退出的过程。
